BF Model

Characteristics and usage

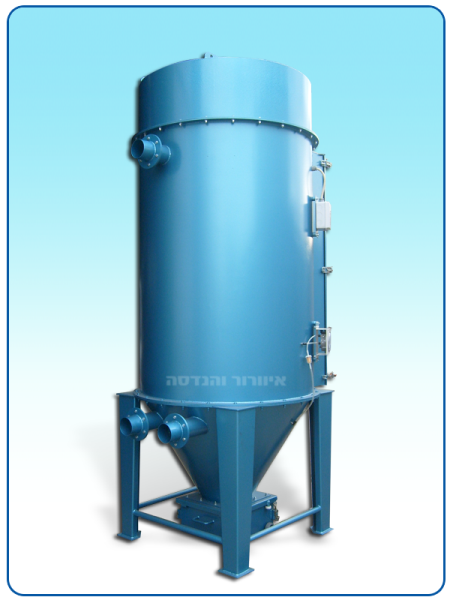

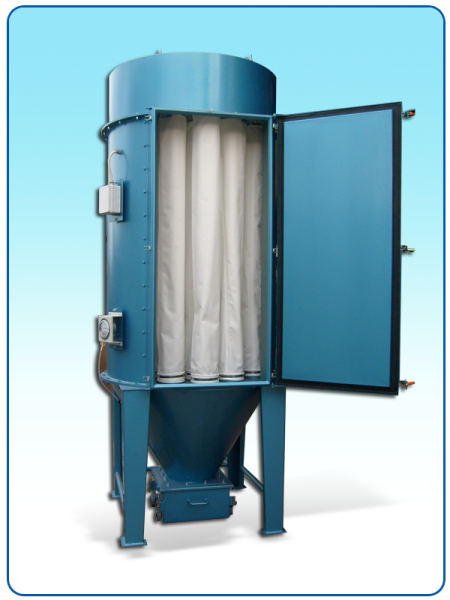

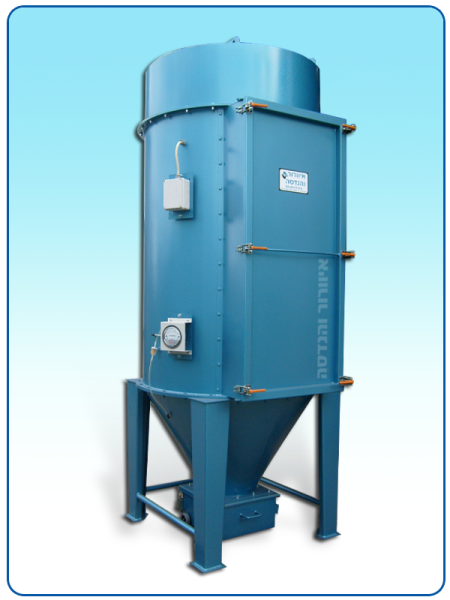

The Bag Filter is an automatic dust collector used to filter air streams from dust and particles emitted during manufacturing processes. The filter optimized for the most massive dust loads in minerals industry processes, such as crushing; grinding; pneumatic conveyance and dehydration of raw materials, and in metal industries casting and metalworking processes.

All the parts of the dust collector system have been laser-cut and CNC bent, the filter body is fully welded and built from 3-5 mm thick Steel plates, Stainless Steel 316 or Stainless Steel 304 which provides mechanical strength and an EXTRA HEAVY DUTY structure as well as a process durability over time.

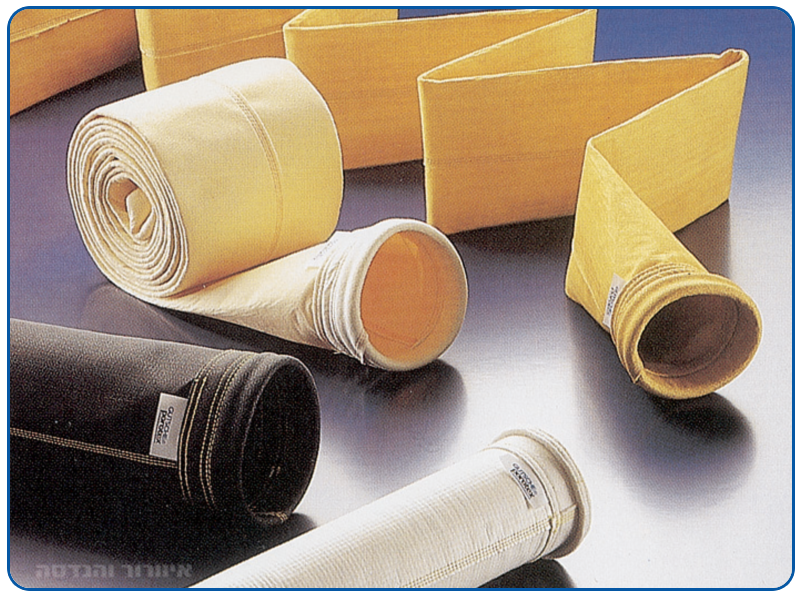

Filtering fabrics:

Polyester, RYTON, P-84, NOMEX, PP, special field treatments, Teflon membranes for high filtering efficiency.

Dust collector element cleaning methods:

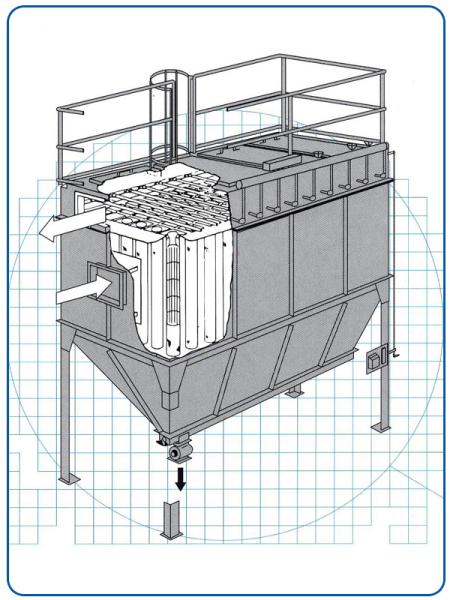

• Automatic cyclic cleaning by Pulse-Jet method via compressed air blower that allows an effective and uniform cleaning throughout the entire filter elements.

Models: 16-1,000 filter bags

Air Capacity: 500- 15,000 Cubic meters per hour (m^3/hr)

User Benefits

1. High filtration efficiency and compliance when dealing with large dust loads.
2.  Continuous, reliable and secure work environment.
3.  An industrial structure based on EXTRA HEAVY DUTY.
4.  The structured facility is allowing smooth operation and simple maintenance.
5. Significant financial savings with the help of spare parts.
6. Washable and reusable filter elements based on      German technological innovations.

All the facilities and systems adjusted to the customer's practical needs.
