Dust collector characteristics and usage

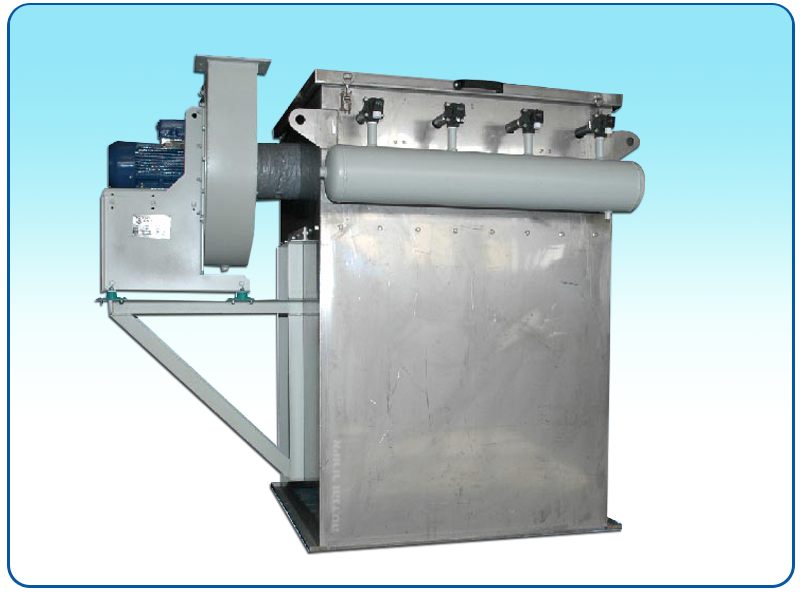

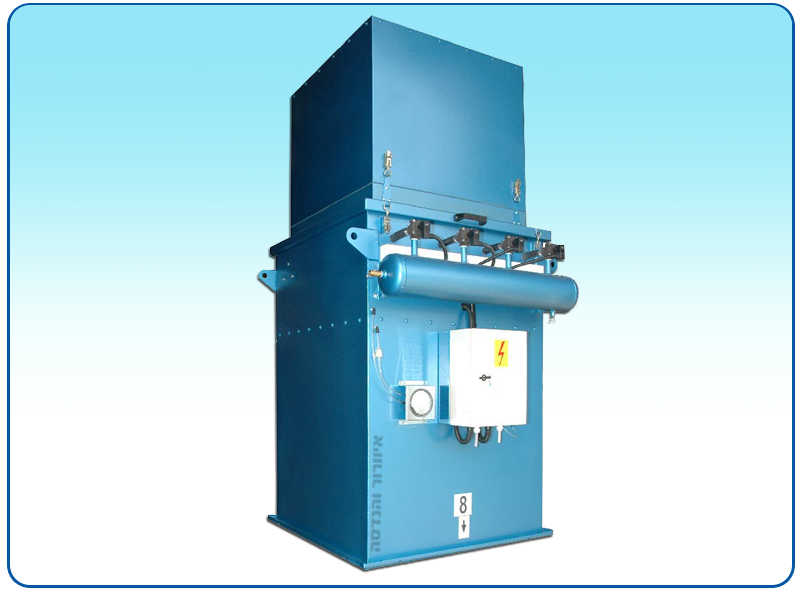

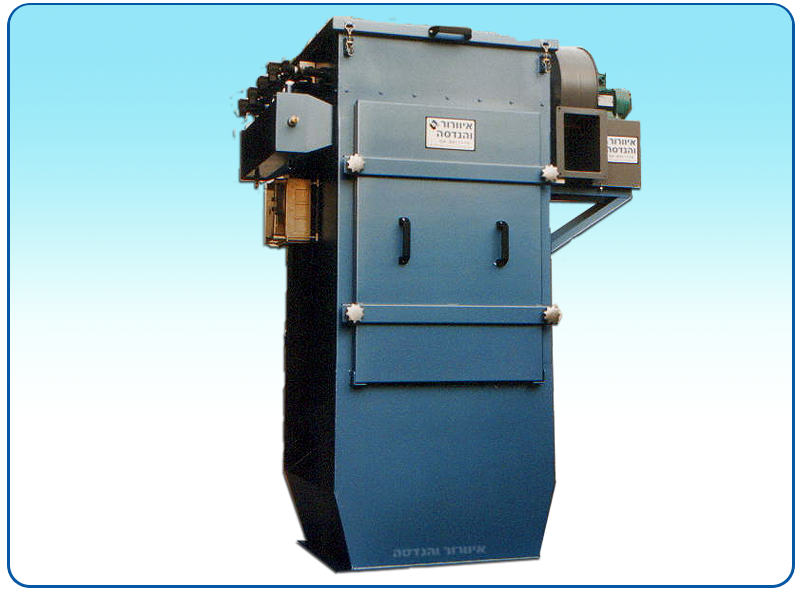

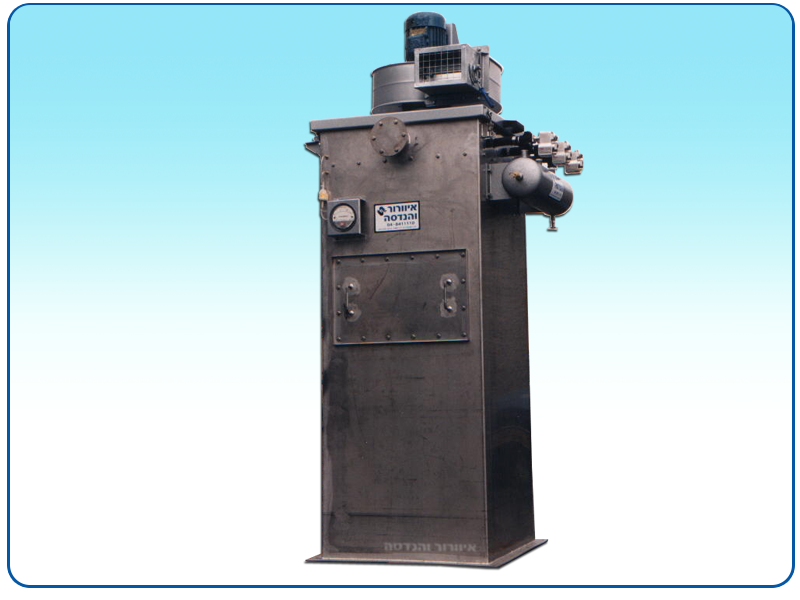

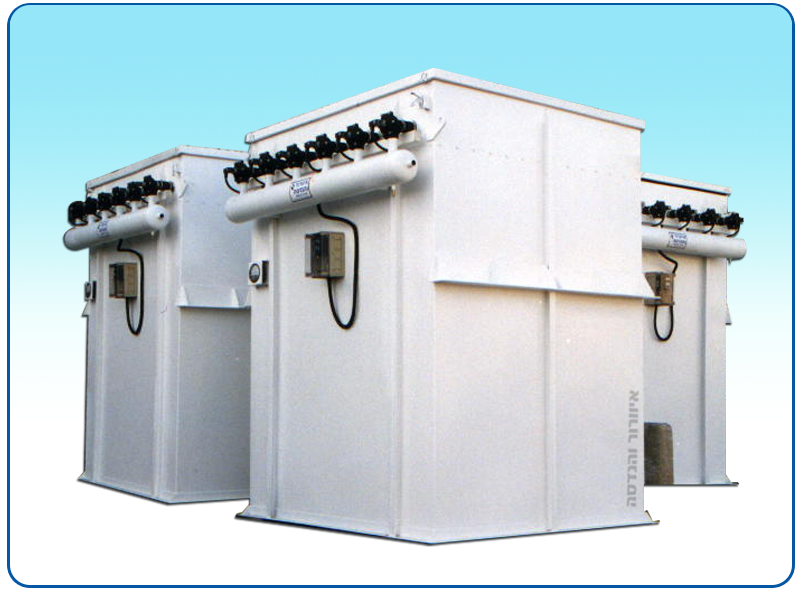

The Cartridge SILO Filter is an automatic dust collector installed directly on top of the silo and is used to prevent dust emissions while filling the silo. The filter is optimized to work continuously within various industries that work with feed mix, raw materials, minerals, food industry, flour mills, and others.

The structure of the filtration system includes a first inertial dust separator that reduces the dust load on the filter cloth. The flow regime of this system is particularly useful and helps to clean the filters and maintain a low-pressure drop. The dust collector equipped with state of the art filter elements that have incredibly high filtration efficiency cloth which ensures compliance with the most stringent emission standards. DIN 24184 CATEGORY M, BIGA, EN-60335-2-69, and meet all the requirements of the Clean Air.

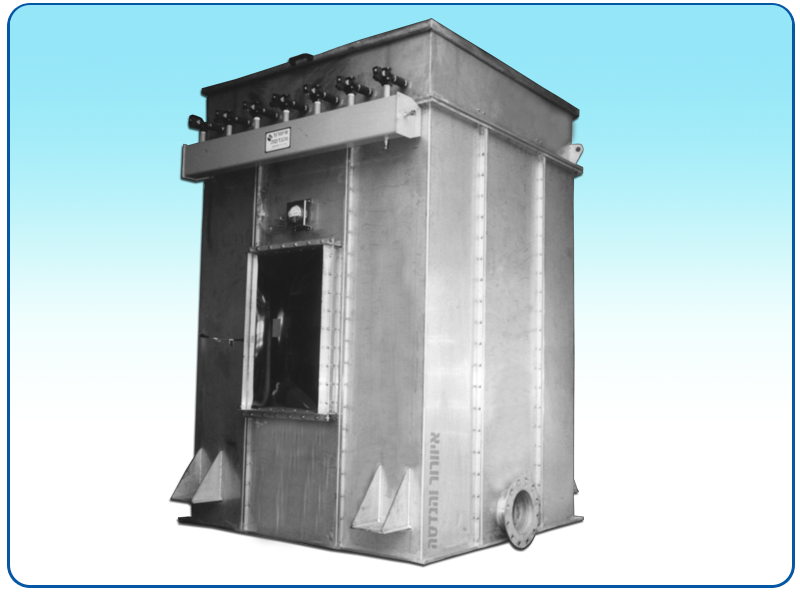

All the parts of the dust collector system have been laser-cut and CNC bent; the filter body is fully welded and built from 3-5 mm thick Steel plates, Stainless Steel 316 or Stainless Steel 304 which provides mechanical strength and an EXTRA HEAVY DUTY structure as well as process durability over time.
Element cleaning methods

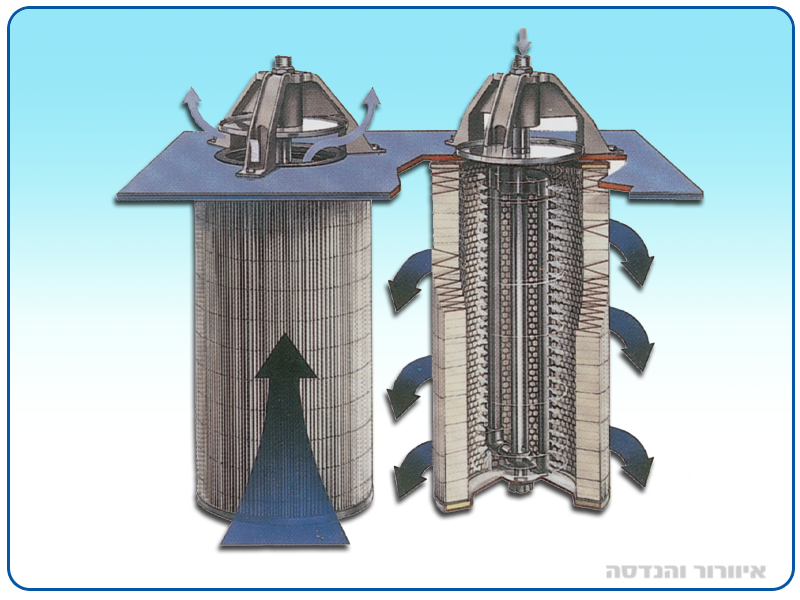

  • The ROTARY-JET - (The Sprinkler Method) is the most progressive and effective cleaning method in the world.  The sprinkler allows the distribution of air evenly throughout the filter. A unified system of pressured cleaning that enables all folds within the filter cleaned individually and perfectly. The use of sprinklers significantly prolongs the life of the filter, reduces the noise level and allows significant savings (up to 70%) in the consumption of compressed air in comparison to other cleaning methods.
  • The Pulse–Jet method along with a Go-Co nozzle allow an effective and uniform cleansing throughout the entire filter and during the filtration process. This method includes areas that are not usually cleaned within the filters when using the standard Pulse-Jet.

Models: CSF-2, CSF-4, CSF-6, CSF-9, CSF-12,
CSF-16, CSF-25
Flow rate: 200-15,000 [m³/hr]
Filtering fabrics:  reinforced polyester, PTFE  Teflon membrane,anti-static fabric.

User benefits

  1. High filtration efficiency and compliance when dealing with large dust loads.

  2.  Continuous, reliable and secure work environment.

  3. An industrial structure based on EXTRA HEAVY    DUTY.

  4.  The structured facility allows smooth operation and simple maintenance.

  5. Significant financial savings with the help of spare parts.

  6. Filter elements based on German technological innovations that are washable and reusable.

All the facilities and systems adjusted to the customer's practical needs.
