Blower uses and features

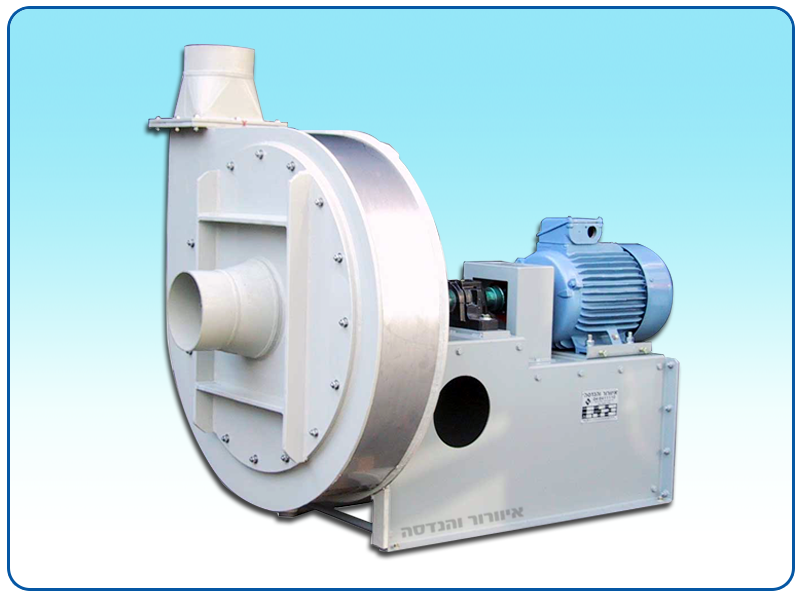

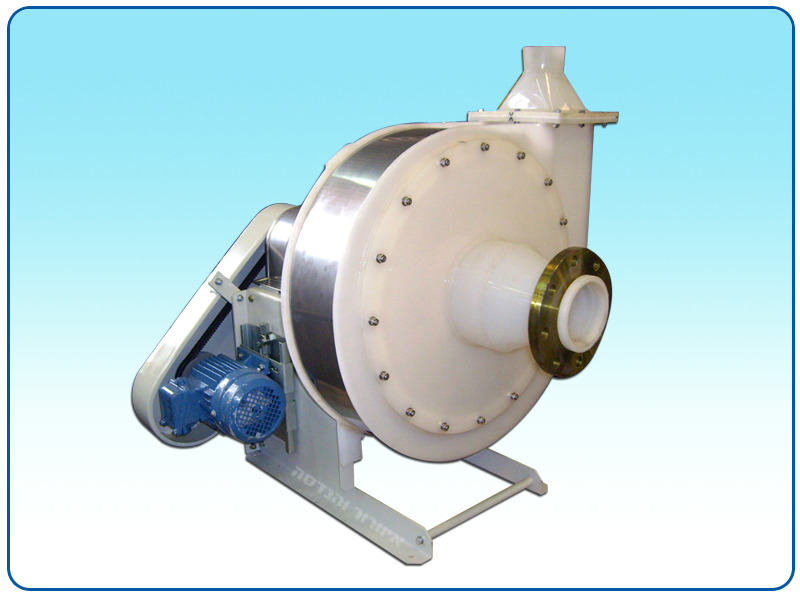

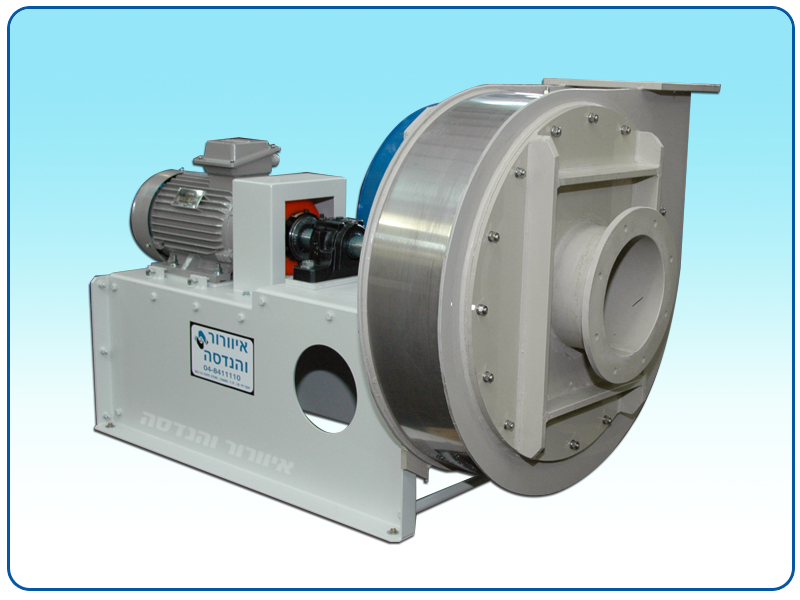

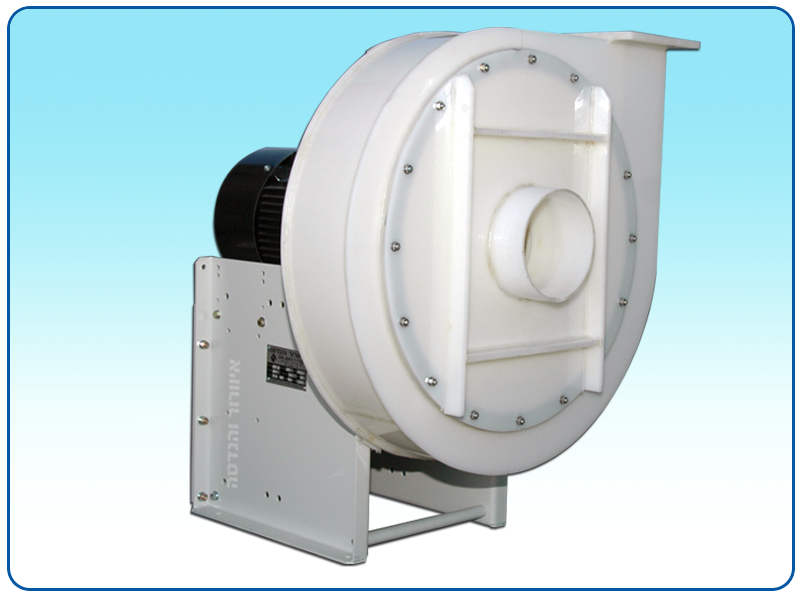

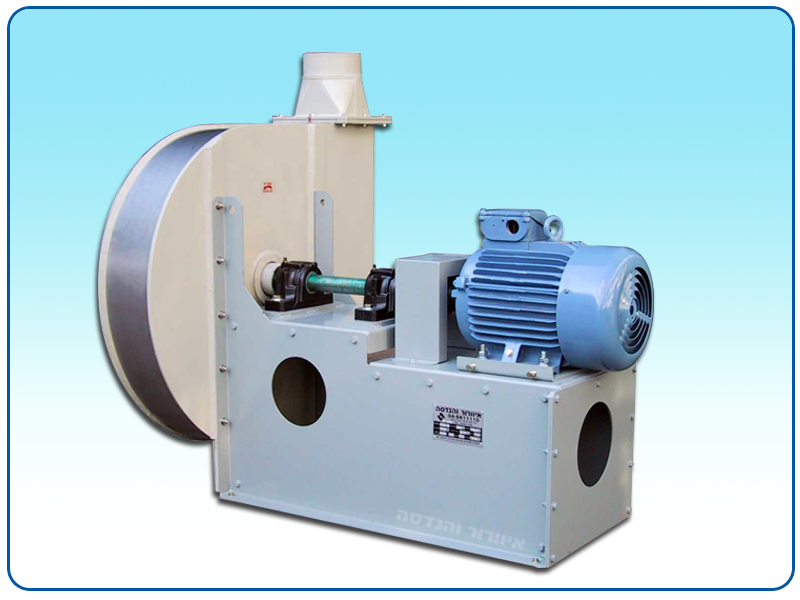

The PPB blower is a welded centrifugal backward-curved impeller blades blower with HEAVY DUTY industrial structure, designed for high energy-conversion efficiency and high pressure.
PPB blower is suitable to vacuum corrosive vapor from the air in chemical manufacturing processes, mainly vapor and gas treatment SCRUBBERS, odor and gas in wastewater facilities, UV treatment in the plastic industry and other corrosive operations where steel blowers are not an option.
Models: impeller diameter 275-1050 mm
Drive: direct, belt, direct with clutch
Air capacity: 100-4000 cubic meters per hour [m^3/hr]
Static pressure: 50-450 mm water pressure head
Building materials: PP, PVC, PVDF
The blower is from extra thick polypropylene or PVDF. The impeller includes stainless steel navel flanges with thick and sealed plastic coating. The flanges include tenons, hex cap screws and screwings for impeller release. All the blowers are statically and dynamically balanced at the process end.
User benefits
HEAVY DUTY structure and reliable building materials ensure process durability over time.
Significant financial savings due to the blower’s high efficiency and process durability.
Simple maintenance by appointed drainage and water rinsing.
Corrosion resistant high-pressure drop
All the facilities and systems adjusted to the customer's practical needs.
