Blower uses and features

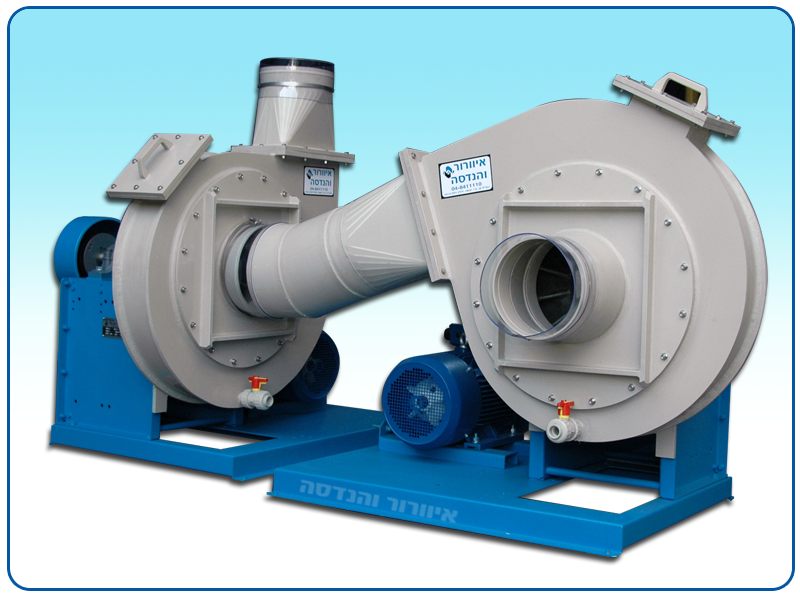

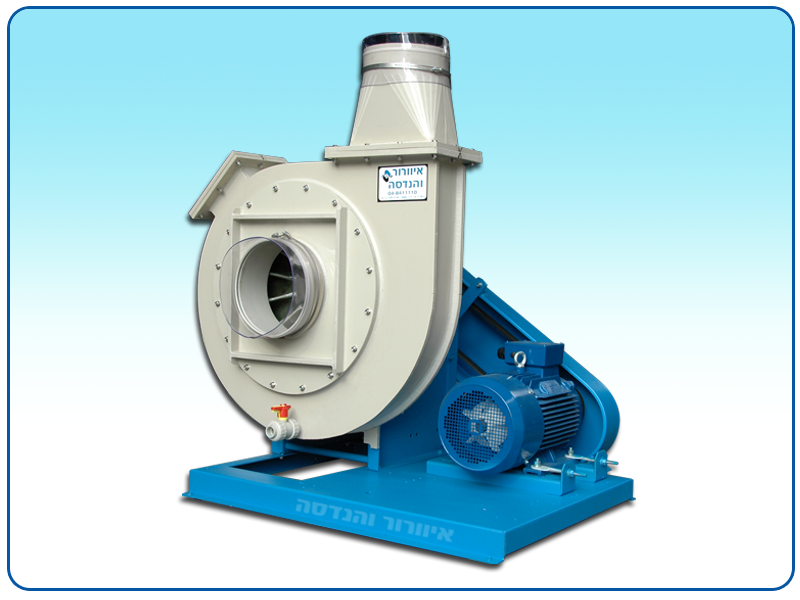

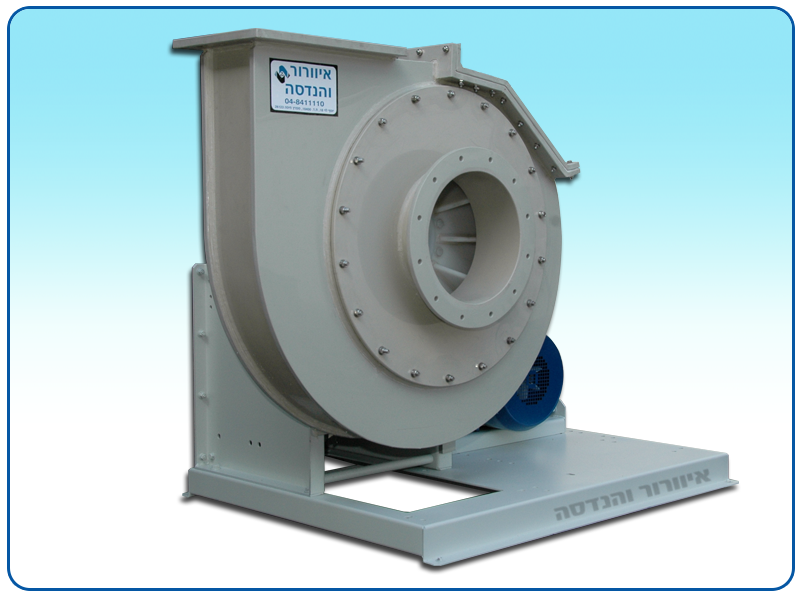

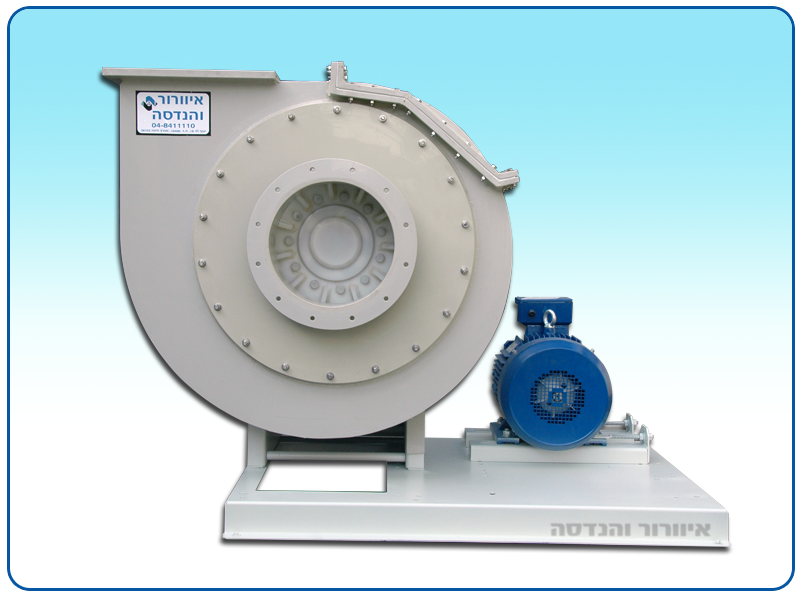

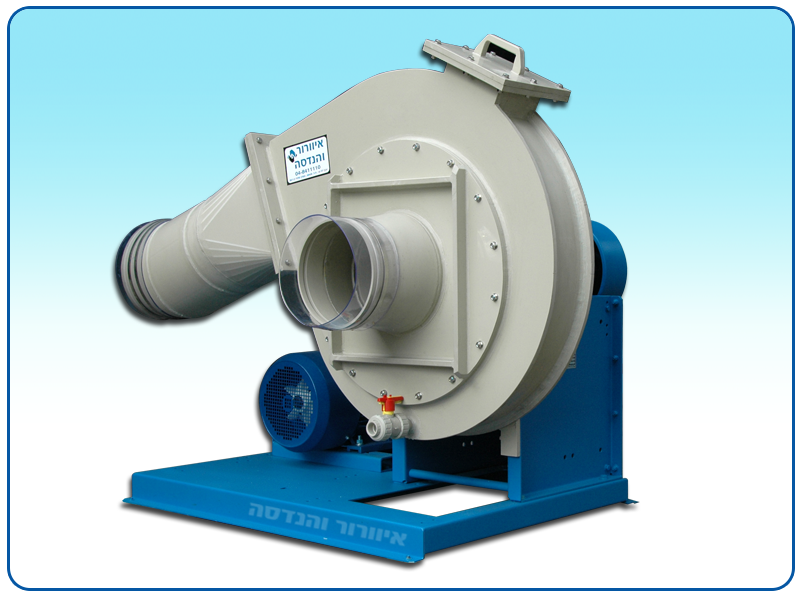

The PPR blower is a radial industrial blower best suited for high-pressure workflow with an EXTRA HEAVY DUTY industrial structure. It is for intensive process workflow in high pressure, pollutants and corrosion conditions.
Models: impeller diameter 600-1600 mm
Drive: direct, belt, direct with clutch
Air capacity: 400-80,000 cubic meters per hour [m^3/hr]
Static pressure: 100-700 mm water pressure head
Building materials: PP, PVD
PPR blower is suitable to vacuum corrosive vapor from the air in chemical manufacturing processes when high pressure is needed, particularly, vapor and gas treatment SCRUBBERS, odor and gas in wastewater facilities, chemical reactors and other corrosive processes.

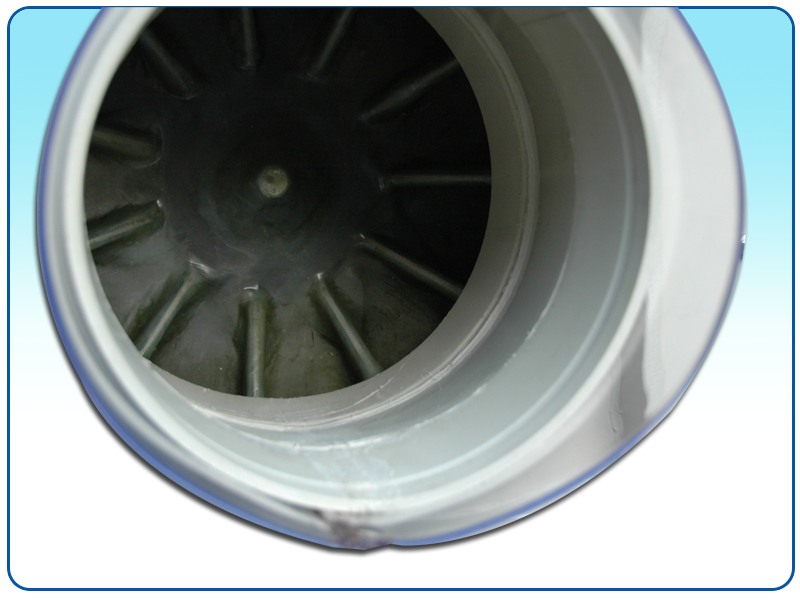

The blower is from extra thick polypropylene or PVDF. The impeller includes navel flanges with a thick and sealed plastic coating. The flanges include tenons, hex cap screws and screwings for impeller release. All the blowers are statically and dynamically balanced at the process end.
User benefits
EXTRA HEAVY DUTY structure and reliable building materials ensure process durability over time.
Significant financial savings due to the blower’s high efficiency and process durability.
Simple maintenance by appointed drainage and water rinsing.
Corrosion resistant high-pressure drop
All the facilities and systems adjusted to the customer's practical needs.
