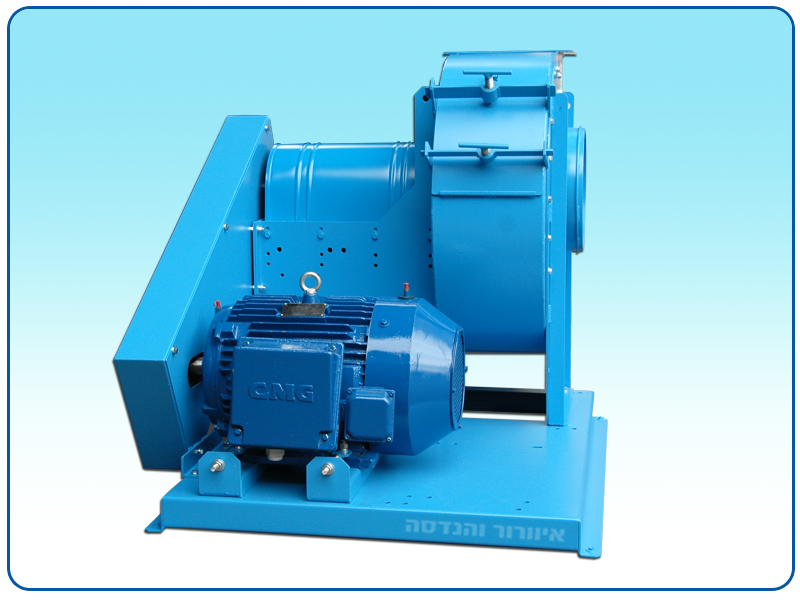

AH Model

Blower/ Fan uses and features

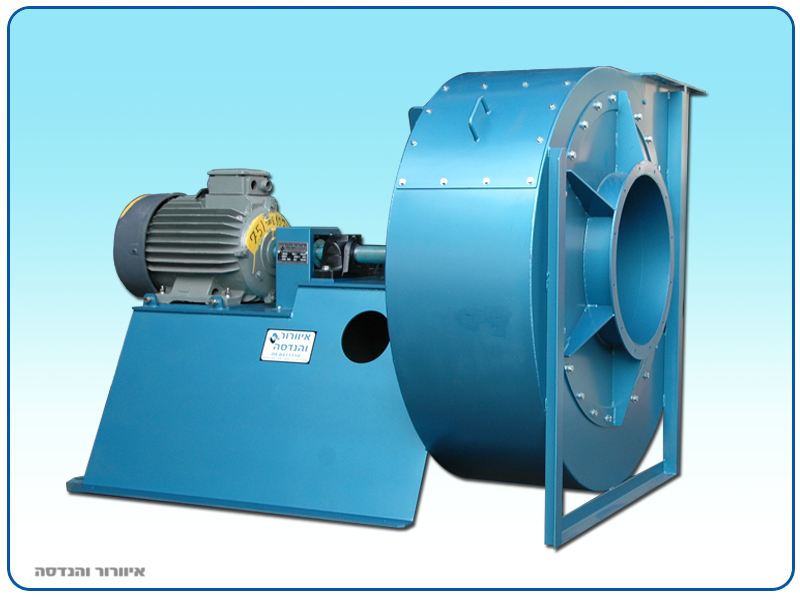

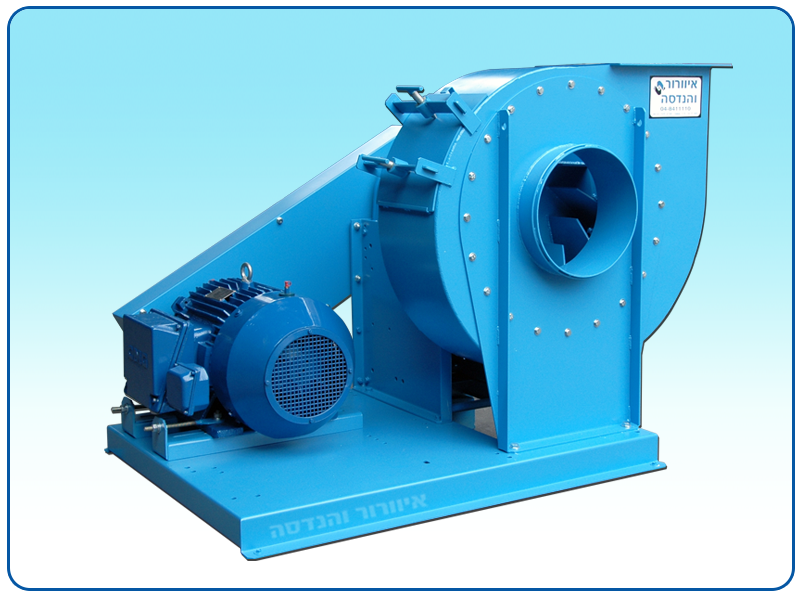

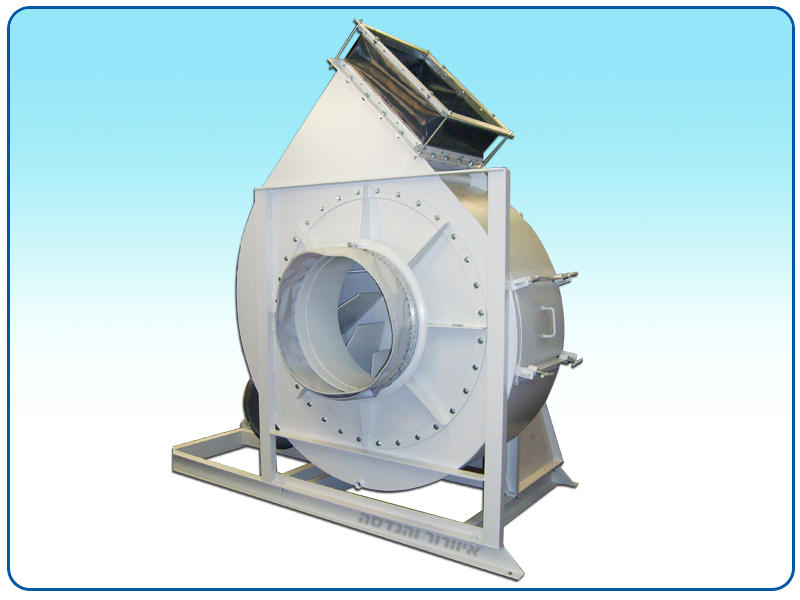

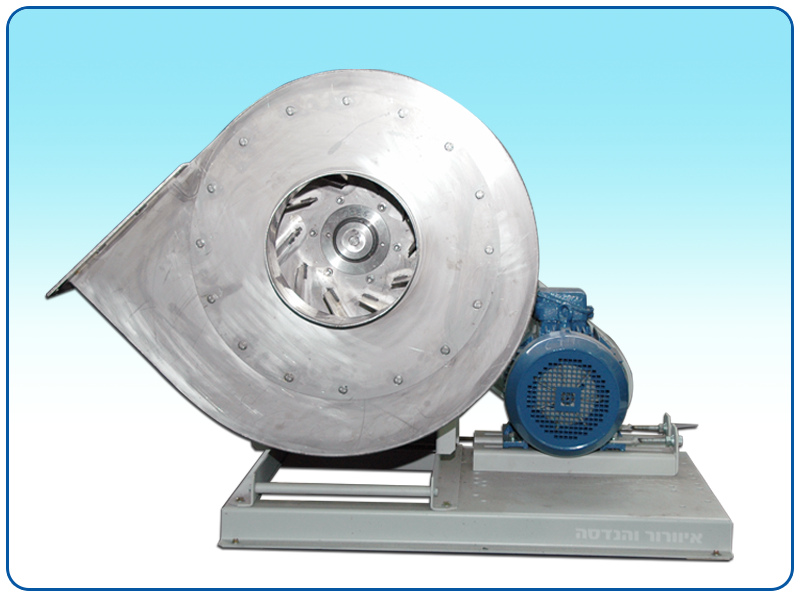

The Centrifugal blower model AH has 10 backward-curved impeller blades with EXTRA HEAVY DUTY welded structure. The blower has high-energy conversion efficiency and is best for sites that need to build up moderate to high pressure with low to moderate dust and particle concentration in the airflow. Such as vacuum and filtration systems, long-haul air supply systems, different machines and more.

The client has significant financial savings in operation and maintenance expenses due to the blower’s high efficiency and structure.

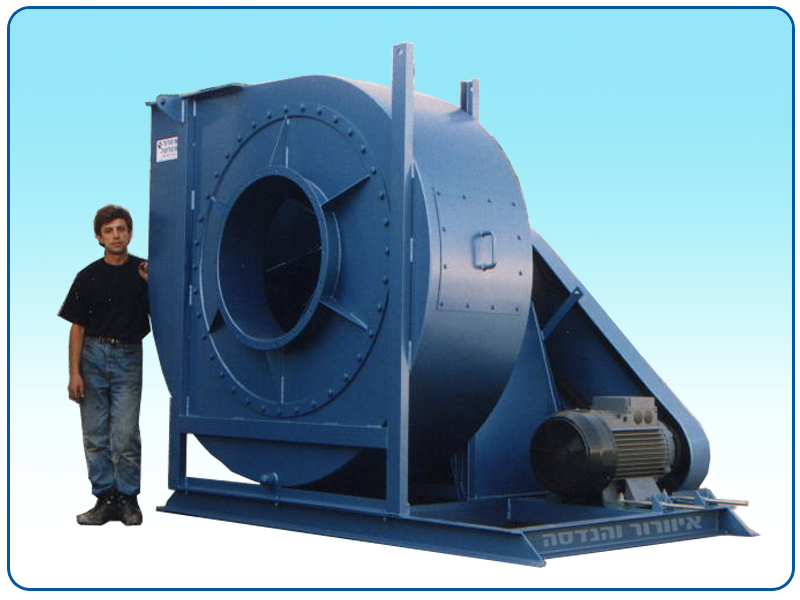

Models: impeller diameter 300-1600 mm

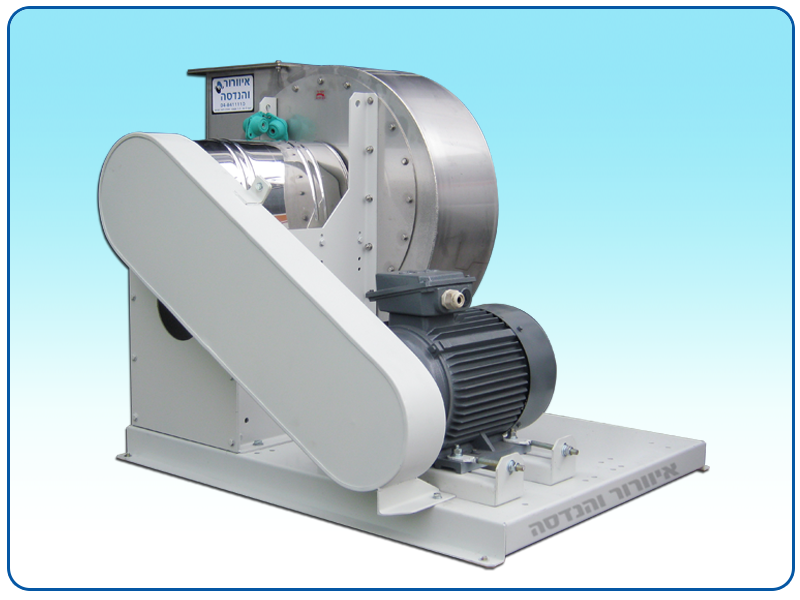

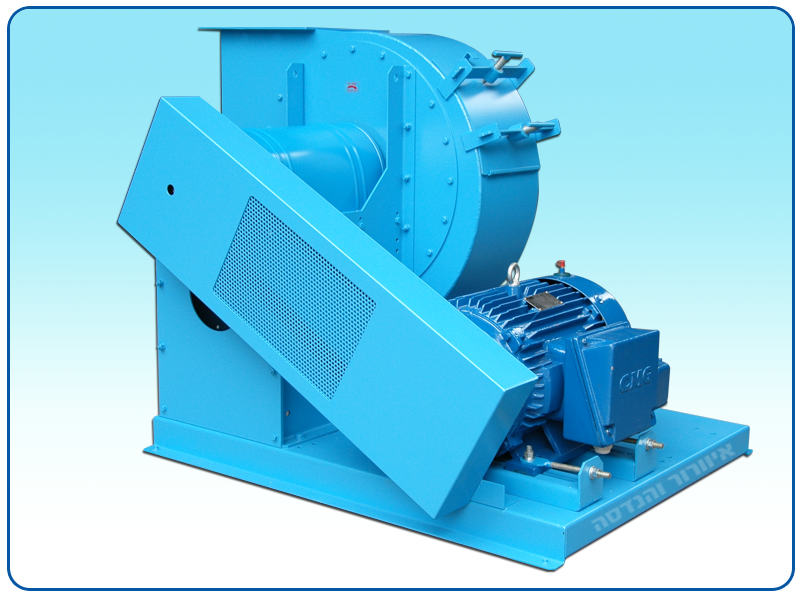

Drive: direct, belt, direct with clutch

Air capacity: 300-800,000 cubic meters per hour [m^3/hr]

Static pressure: 100-1200 mm water pressure head

Building materials: carbon steel, stainless steel, solid coated steel, anti-spark aluminum.

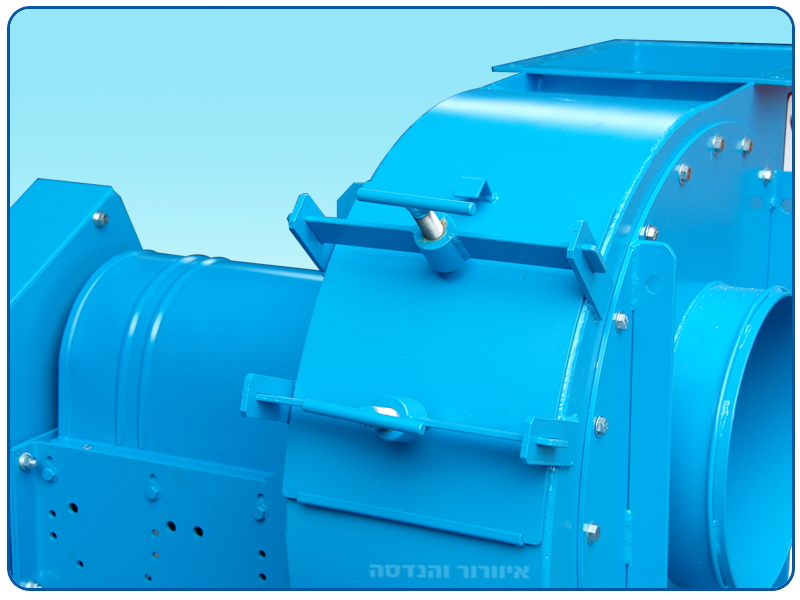

All the parts of the blower have been laser-cut, fully welded and built from thick metal plates, which provide mechanical strength and a HEAVY DUTY structure for the smaller models and EXTRA HEAVY DUTY structure for the larger models. The blades fully welded to the impeller providing additional mechanical strength.

User benefits

1. A HEAVY DUTY structure and reliable building materials ensure process durability over time.

2. Significant financial savings due to the blower’s high efficiency and process durability.

3. Simple maintenance by appointed drainage.

All the facilities and systems adjusted to the customer's practical needs.
