MH Model

Blower / Fan uses and features

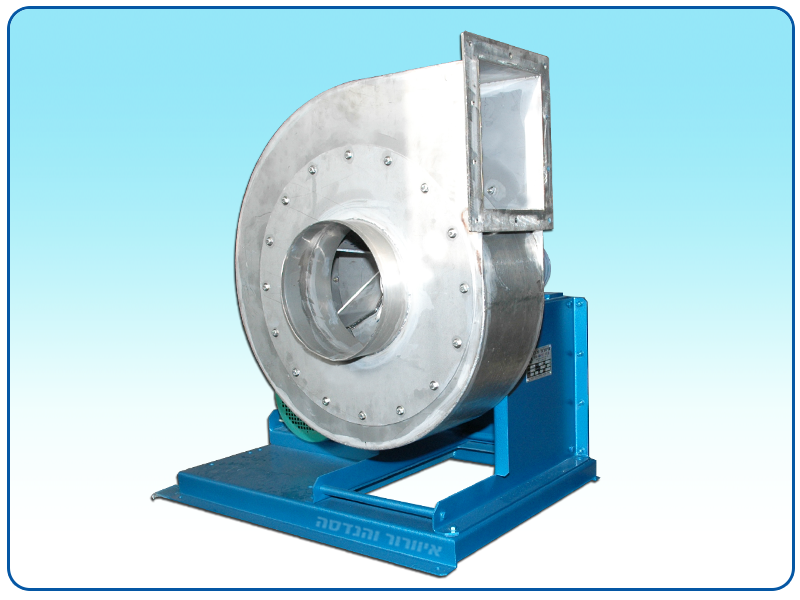

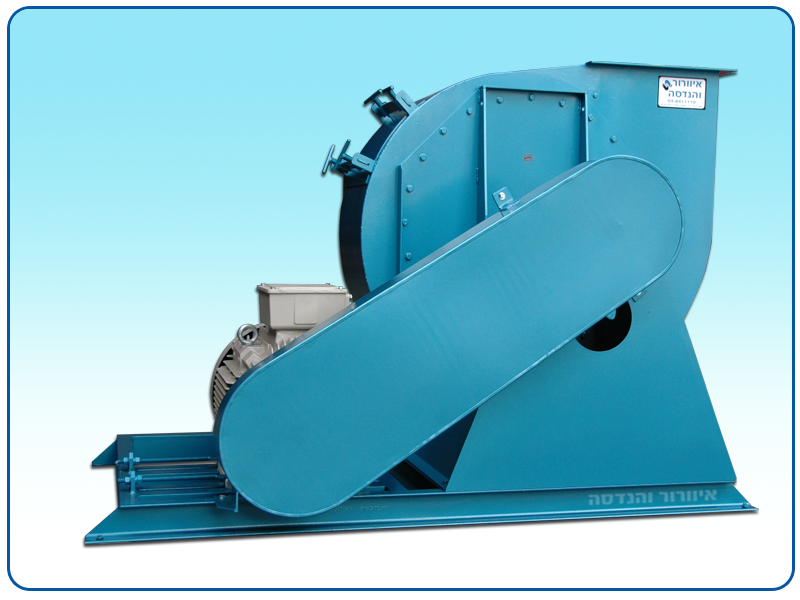

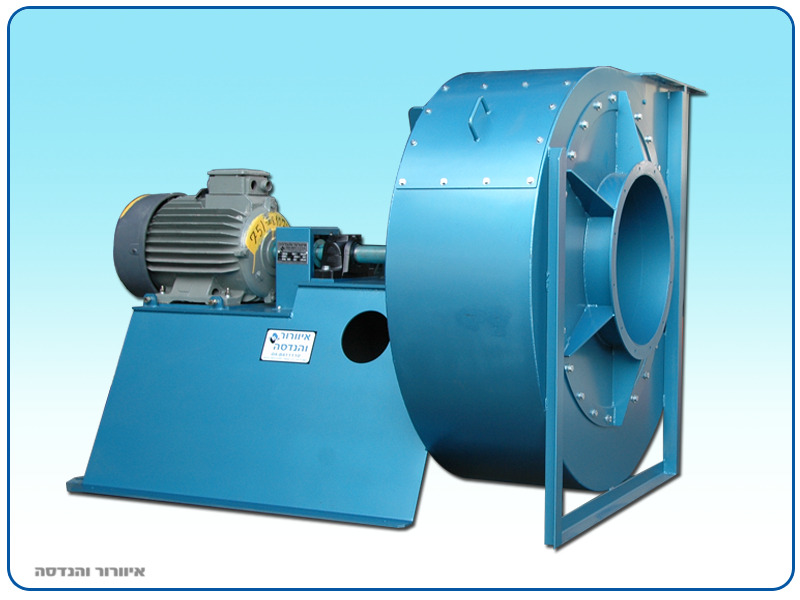

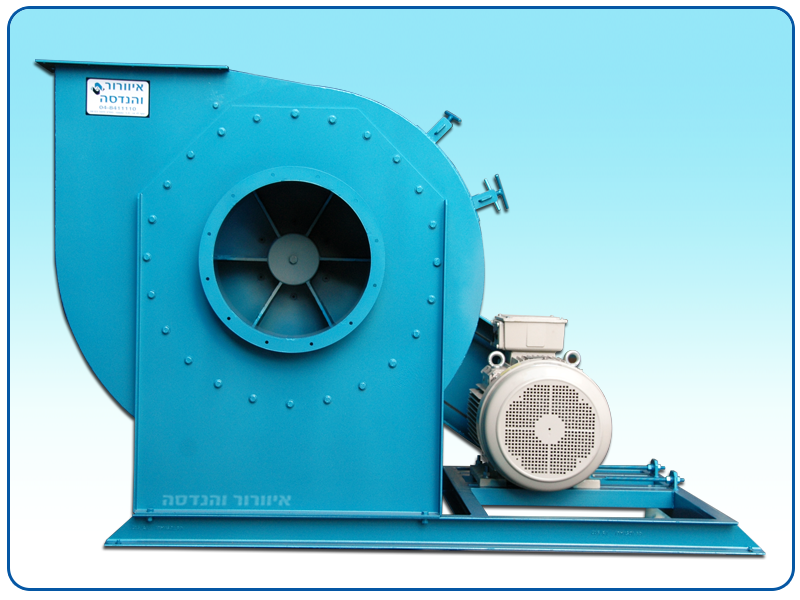

MH model blower is a centrifugal blower with a radial impeller designed for waste and material handling. The blower has high energy-conversion efficiency and durability that allows working under intensive workflow conditions and significant financial saving on operating and maintenance. The MH impeller has a structure that prevents accumulation on its blades.

Models: impeller diameter 300-1600 mm

Drive: belt, direct with a clutch.

Air capacity: 200-80,000 cubic meters per hour [m^3/hr]

Static pressure: 100-1000 mm water pressure head

Building materials: carbon steel, stainless steel, hard steel with an anti-wearing down coating.

All the parts of the blower have been laser-cut, fully welded and built from thick metal plates which provide mechanical strength and a HEAVY DUTY structure for the smaller models and EXTRA HEAVY DUTY structure for the larger models. The blades fully welded to the MH impeller providing additional mechanical strength and smooth material transfer through it.

User benefits

1. HEAVY DUTY structure and reliable building materials ensure process durability over time.

2. Significant financial savings due to the blower’s high efficiency and process durability.

3. Simple maintenance by appointed drainage.

4. Suitable for high particle concentration air flow
