PB Model

Blower / Fan uses and features

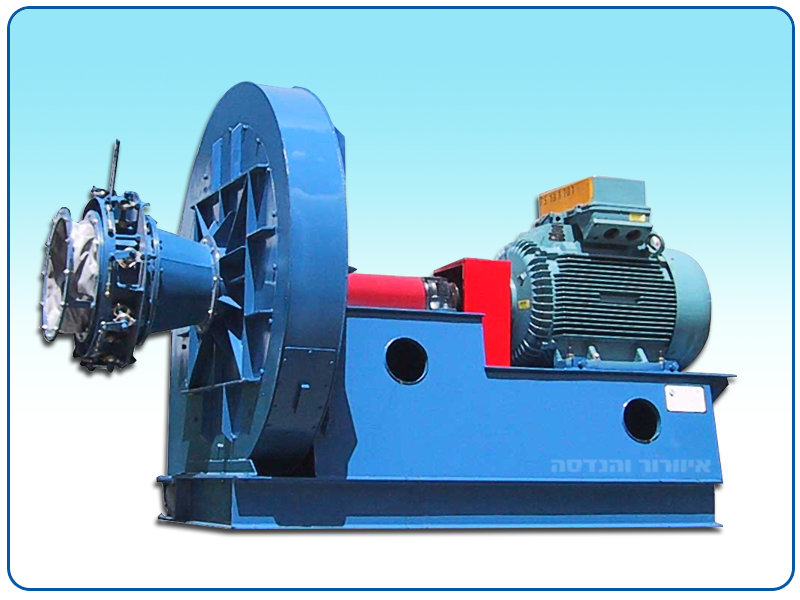

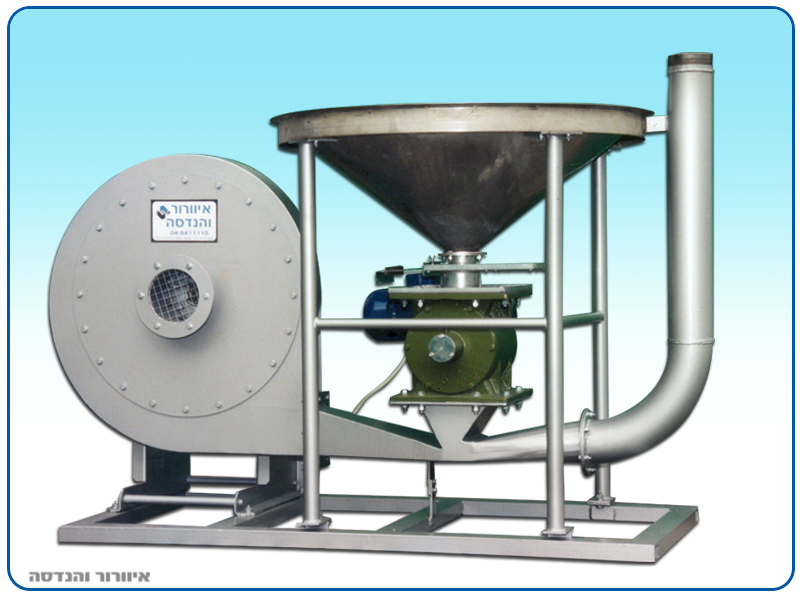

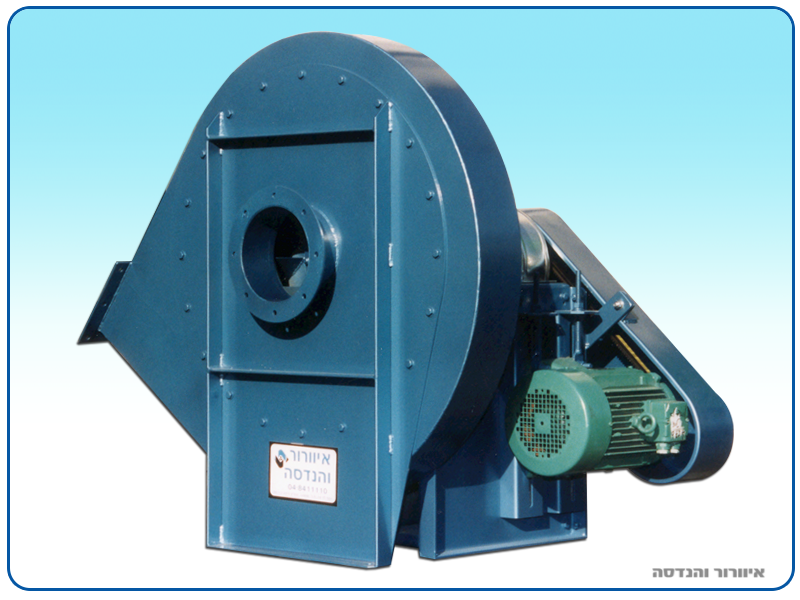

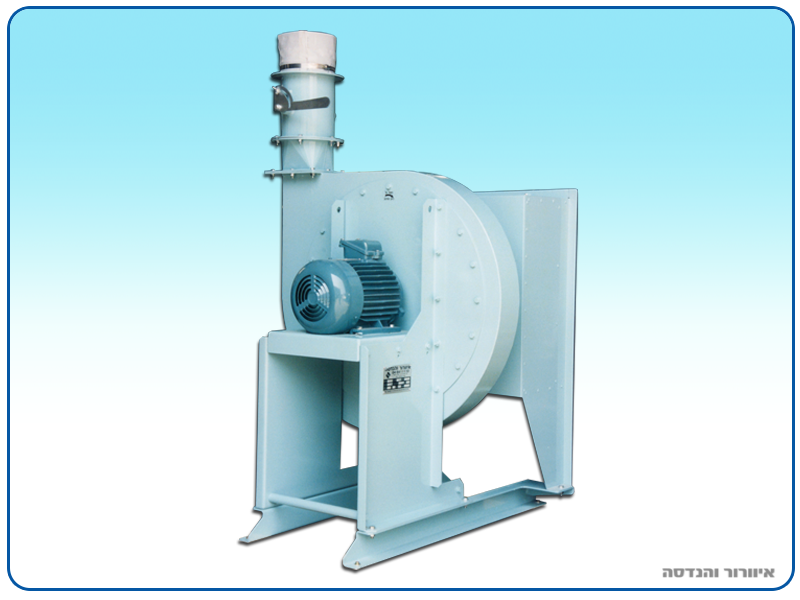

PB model blower series are centrifugal industrial blowers best for high-pressure workflow. The HEAVY DUTY structure is compatible with intensive process work in extreme conditions of pressure, temperature, dust, and corrosion. The PB blowers are for high vacuum pressure and filtration systems, marginal vacuum systems, pneumatic, and waste evacuation systems and air-knife blowers. It is possible to add a PBM open radial impeller for large particle concentration and waste transportation.

Models: PB, PBP, PBG, PBN

Impeller diameter: 250-2000 mm

Drive: direct, belt, direct with a clutch.

Air capacity: 100-32,000 cubic meters per hour [m^3/hr]

Static pressure: 150-2000 mm water pressure head

Building materials: carbon steel, stainless steel, anti-spark aluminum.

All the parts of the blower have been laser-cut, fully welded and built from thick metal plates which provide mechanical strength and a HEAVY DUTY structure for the smaller models and EXTRA HEAVY DUTY structure for the larger models. The blades fully welded to the impeller providing additional mechanical strength.

User benefits

1. HEAVY DUTY structure and reliable building materials ensure process durability over time.

2. Significant financial savings due to the blower’s high efficiency and process durability.

3. Simple maintenance by appointed drainage.
